X-ray Inspection System(KKM-X8084)

Product name : X-ray Inspection System(KKM-X8084)

Item : 1016

Details :

Product Features:
l high performance data acquisition module, high-speed USB 2.0 interface technology-based the XPe image processing system to ensure accurate detection equipment, stable;

l using state-of-the-art X-ray imaging and processing technology, foreign body detection (identify food, metal, ceramics, bricks, bones, hard plastic, etc.), not the shape or the number of defect detection (identification products damaged or incomplete, and , etc.), shielding set (aluminum ring shield at both ends of the ham, canned Zhakou desiccant packaged food is easy to mistakenly identify the area) and other functions;

l Adopting the operating method of complete color and integrated touch-type LCD screen, easy to operate,to greatly save the time to train the operator;

l variety reject device, users equipped with a the arbitrary sorting mechanism (pneumatic the flap, pneumatic push plates and channel airgun separator), to achieve a high degree of automation testing requirements according to different food, lower product loss;

l Japan detector industrial identification accuracy standards, in line with international food safety and quality control requirements;

Radiation safety license [Download]

l HACCP standard on water-washable cleaning;

Both the transport belt and protection curtain can be easily assembled and unassembled as well as cleaned, and the transportation part is in accordance with IP66 Water Proof Standard;

l Service performance of high reliability;

The cabinet shall adopt the completely sealed structure, to isolate the moisture and dust,equipped with the air conditioner to adapt to various bad producing environment;
l light source working status indication, multiple external protection device.

Applications:

l detection of bulk materials (such as cereals, nuts, dehydrated vegetables) in metal, stone, glass and other hard foreign body;

l seafood product mixed with shells, pearls, stones, metal;

l canned products, packaged food inside the glass, metal, etc;

l packaged foods internal defect detection (identification products damaged or incomplete, shape or varying amounts).

Note:

Specifications and parameters may change specific to the product specification shall prevail.
Dimensions Download：

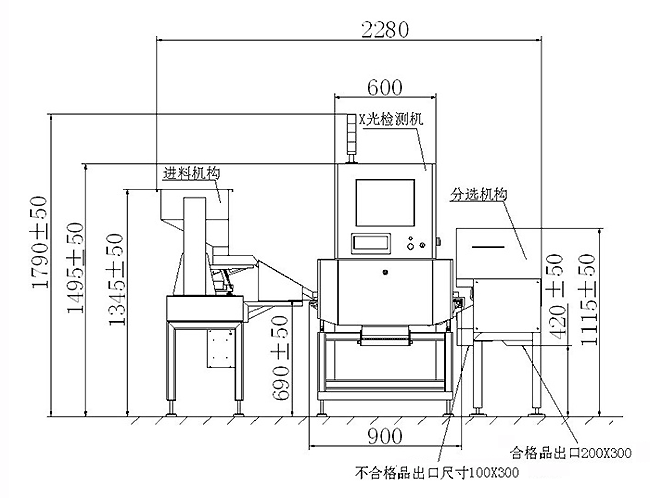

X-ray(bulk material)【2-1】

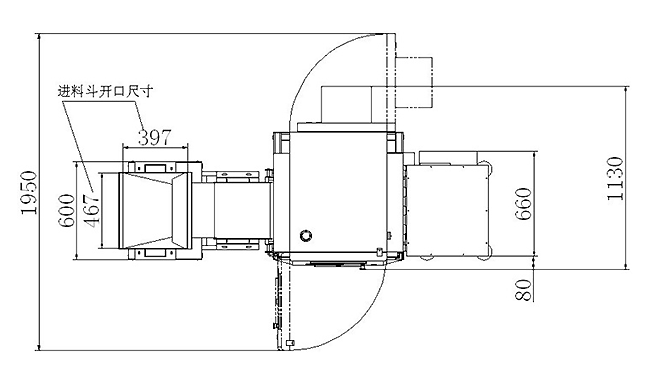

X-ray(bulk material)【2-2】

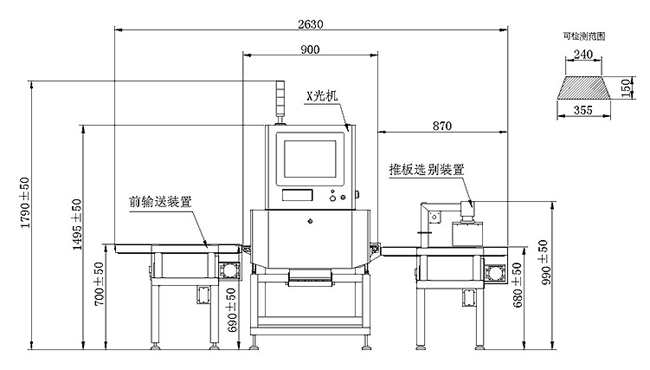

X-ray(Packaging)【2-1】

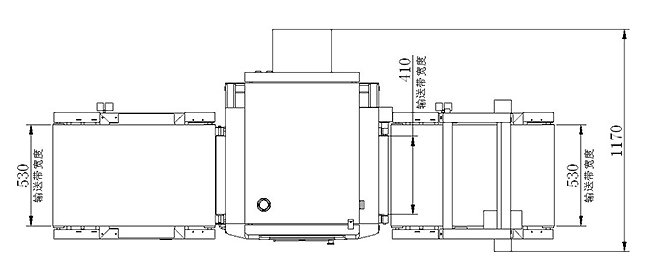

X-ray(Packaging)【2-2】

Model	KKM-X8084
Inspect Size（mm）	Width≤355mm，Height≤150mm， Length≤400mm
*Dimension(LWH)(mm)*	920x 1150x1790
X-ray Output	350W，Max 80kV/8.0mA
Warm-up Time（min）	≤10

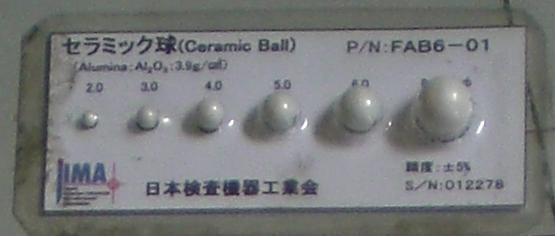

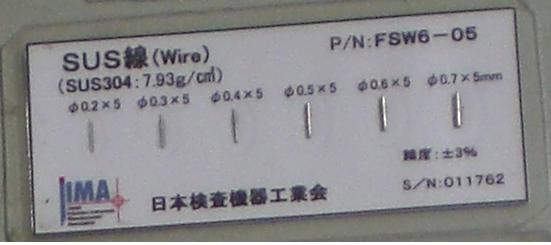

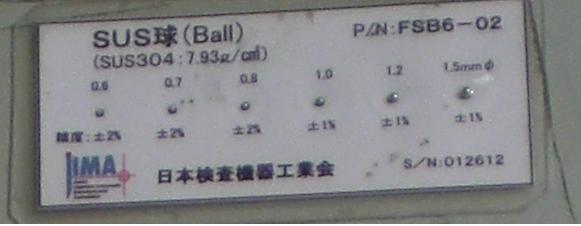

Sensitivity（mm）	SUS Ball≥Φ0.4、SUS Thread≥Φ0.3x2、Glass≥Φ2.0、 ceramic≥Φ2.0、rubber≥Φ3.0
Interface	17 Inch Liquid Crystal Screen
Conveyor Speed（m/min）	10-70 adjustable
Belt Width（mm）	410
X-ray Leakage（μSV/h）	≤1
Protection Level	IP66 for belt，IP54 for other parts
Application Surrounding	Stable environment 0-40℃，Relative humidity 30-85%
Power Supply	Single phase AC220V±10%，50-60Hz，2kVA
Note：1：X-ray foreign body detection is divided into bulk material testing and the host packaging testing, class of bulk materials and packaging class is the same, the difference between the feed device and remove the device configuration. 2：Part of the bulk material, optional original spray valve removed, effectively removed the bulk compound of the foreign body, the yield than conventional flaps eliminate much higher. 3：The above-said sensitivity value is the maximum of the surface of the transport belt,and the real sensitivity may be affected by the product,or by the different locations the foreign matter mix in,leading the real value of sensitivity is sliggtly lower than the aforesaid value.
